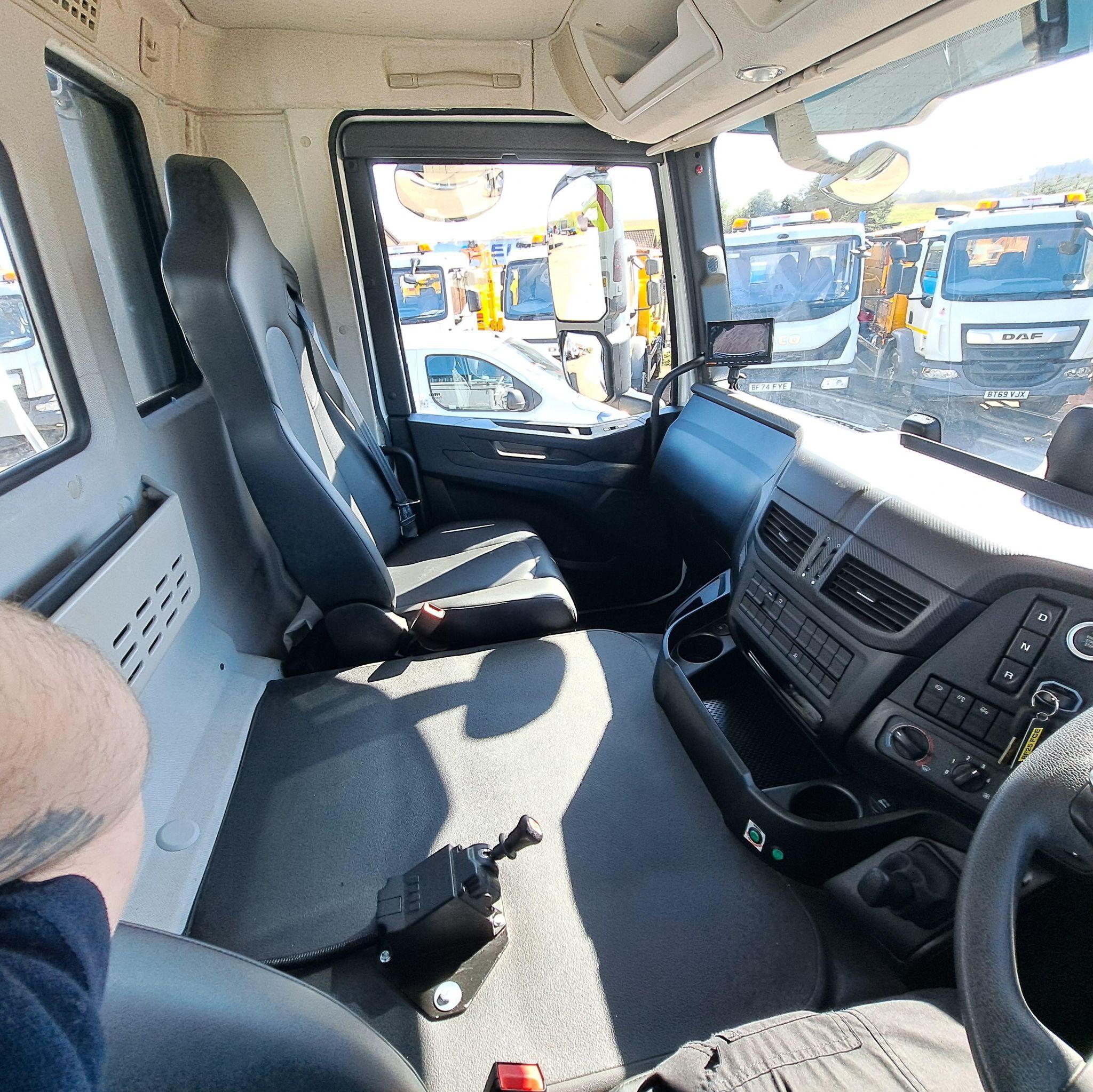

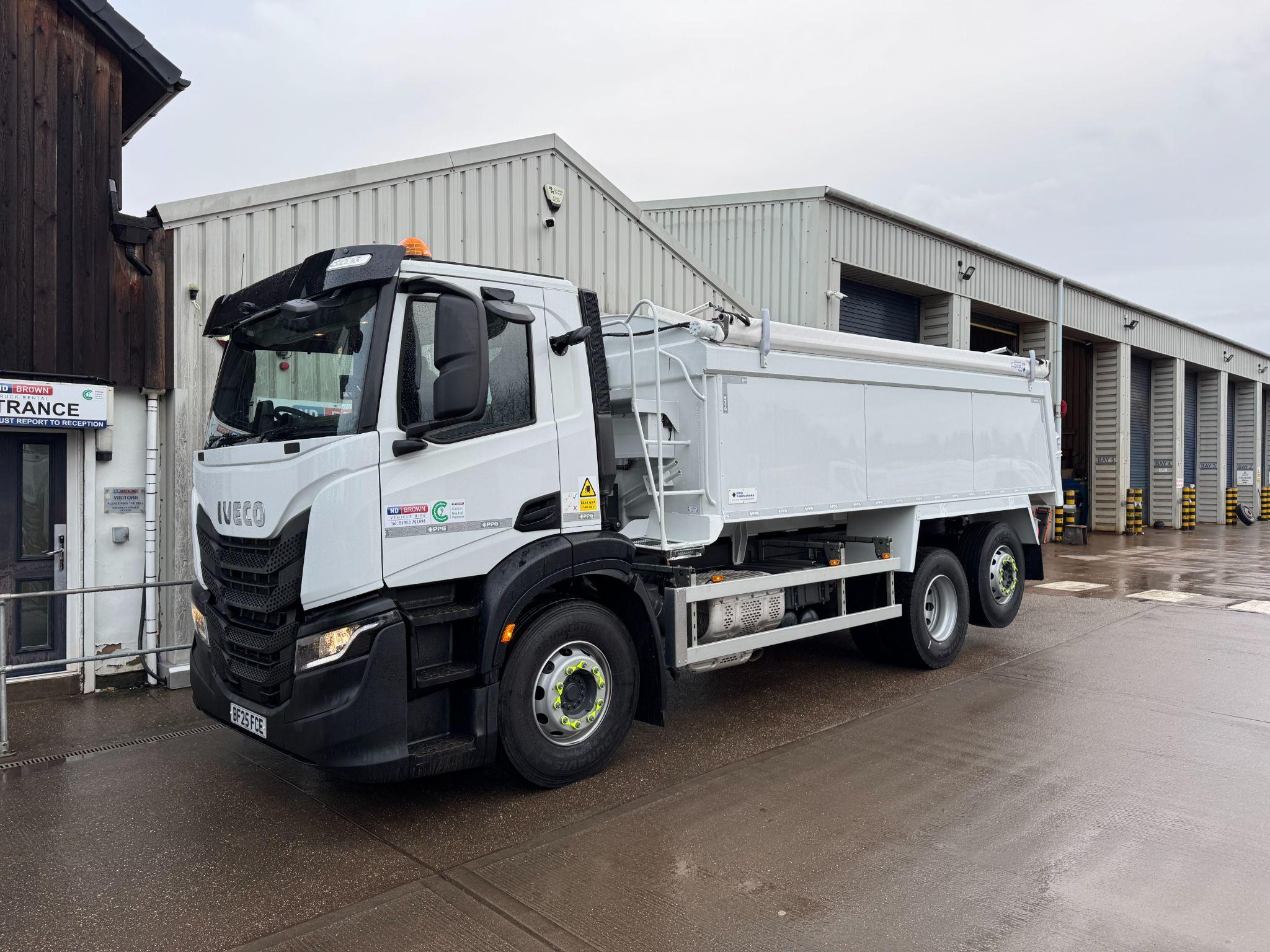

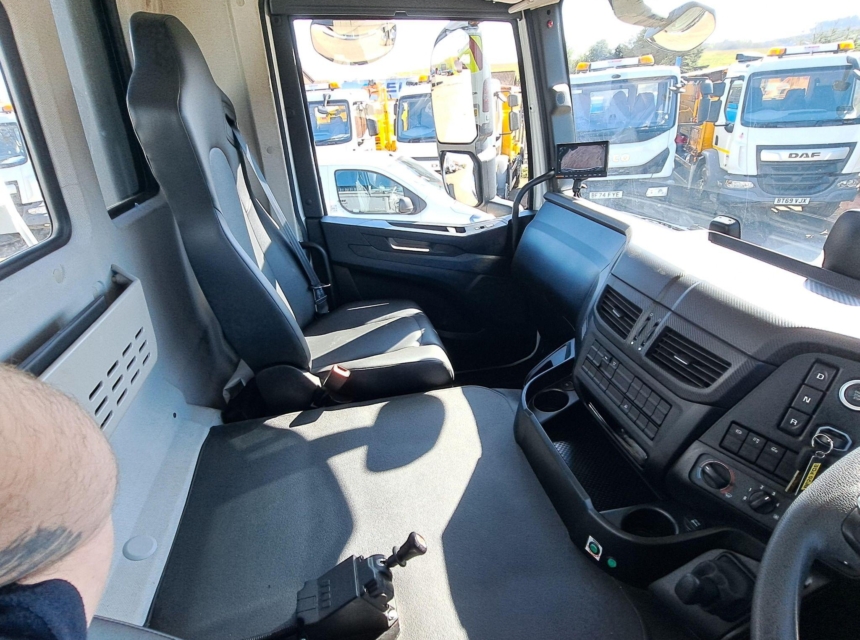

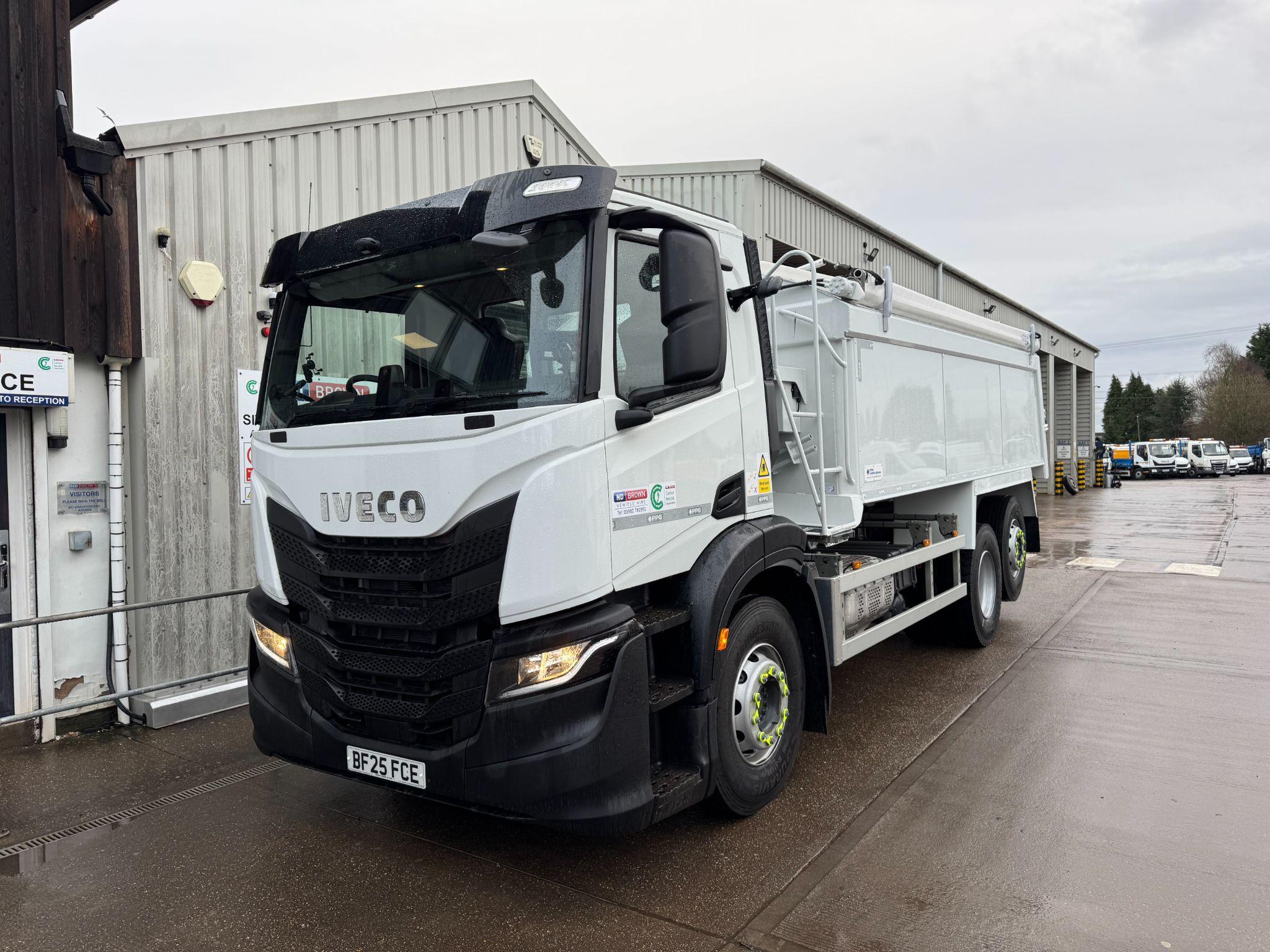

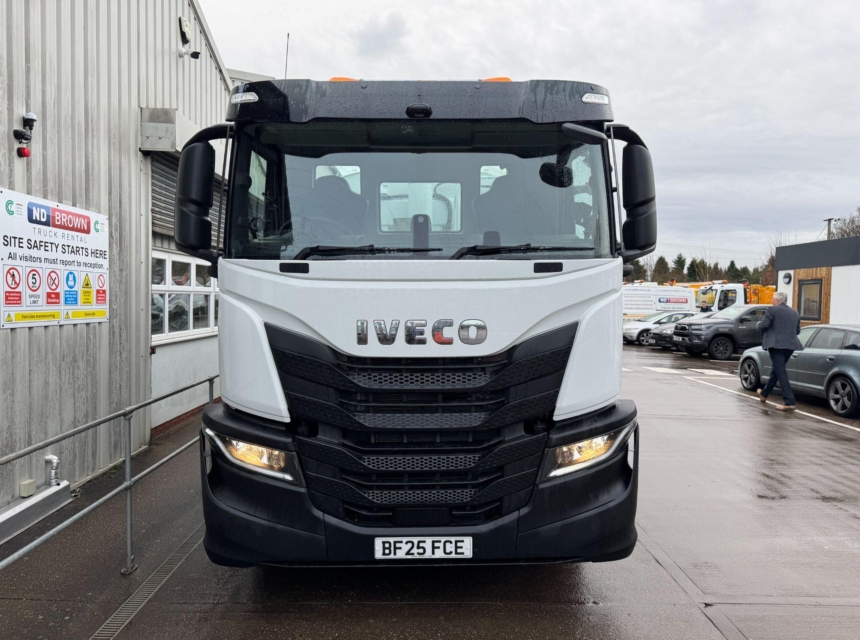

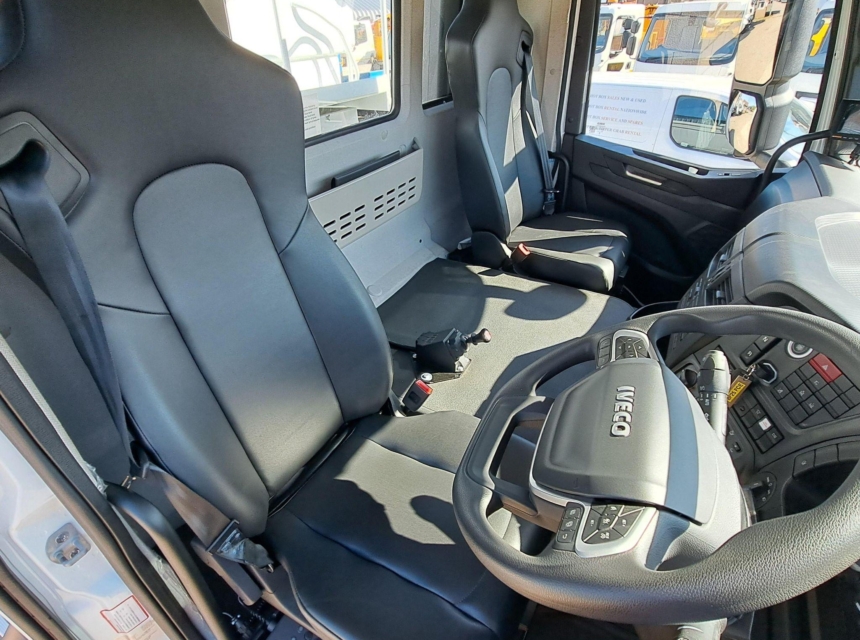

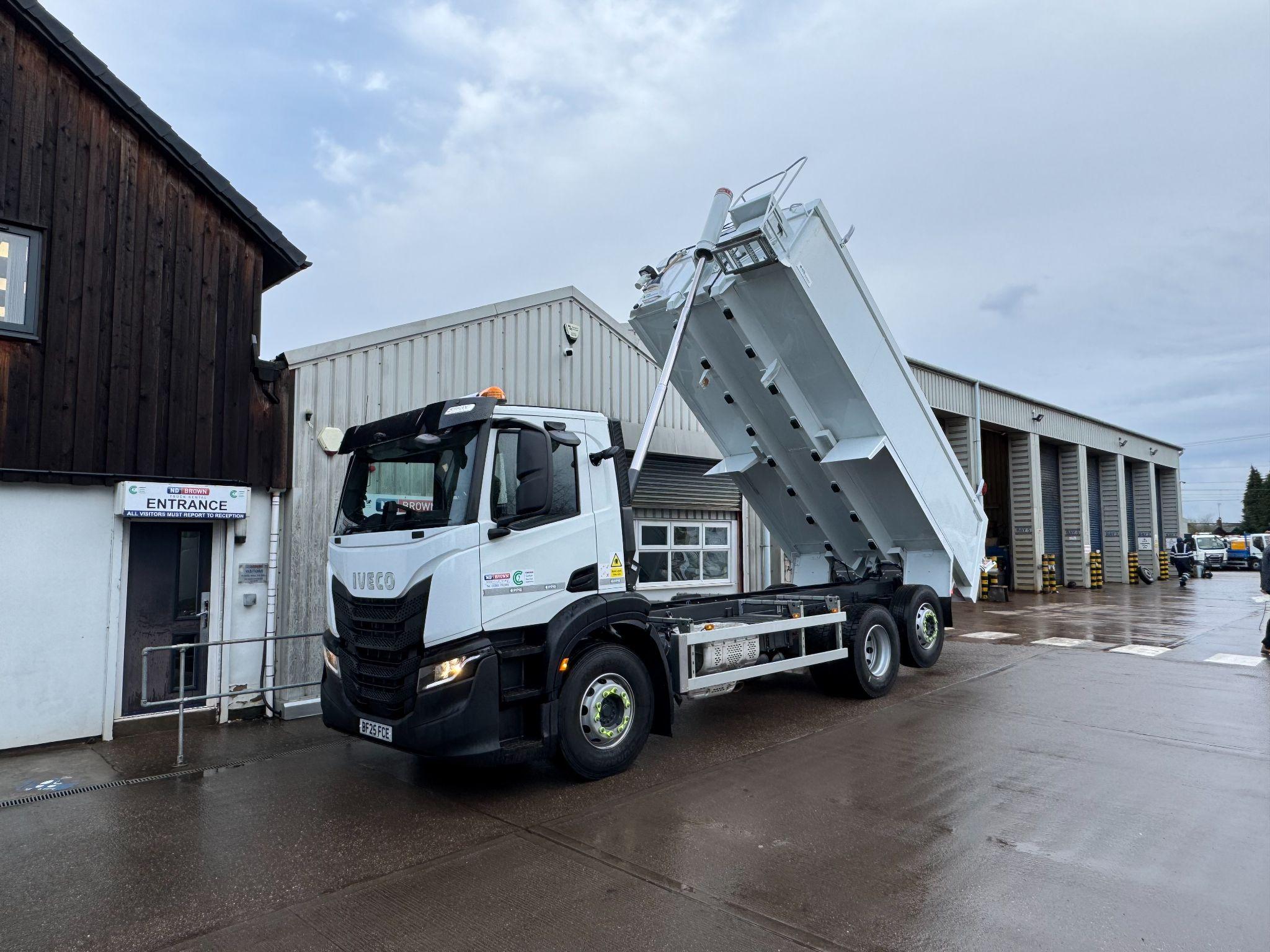

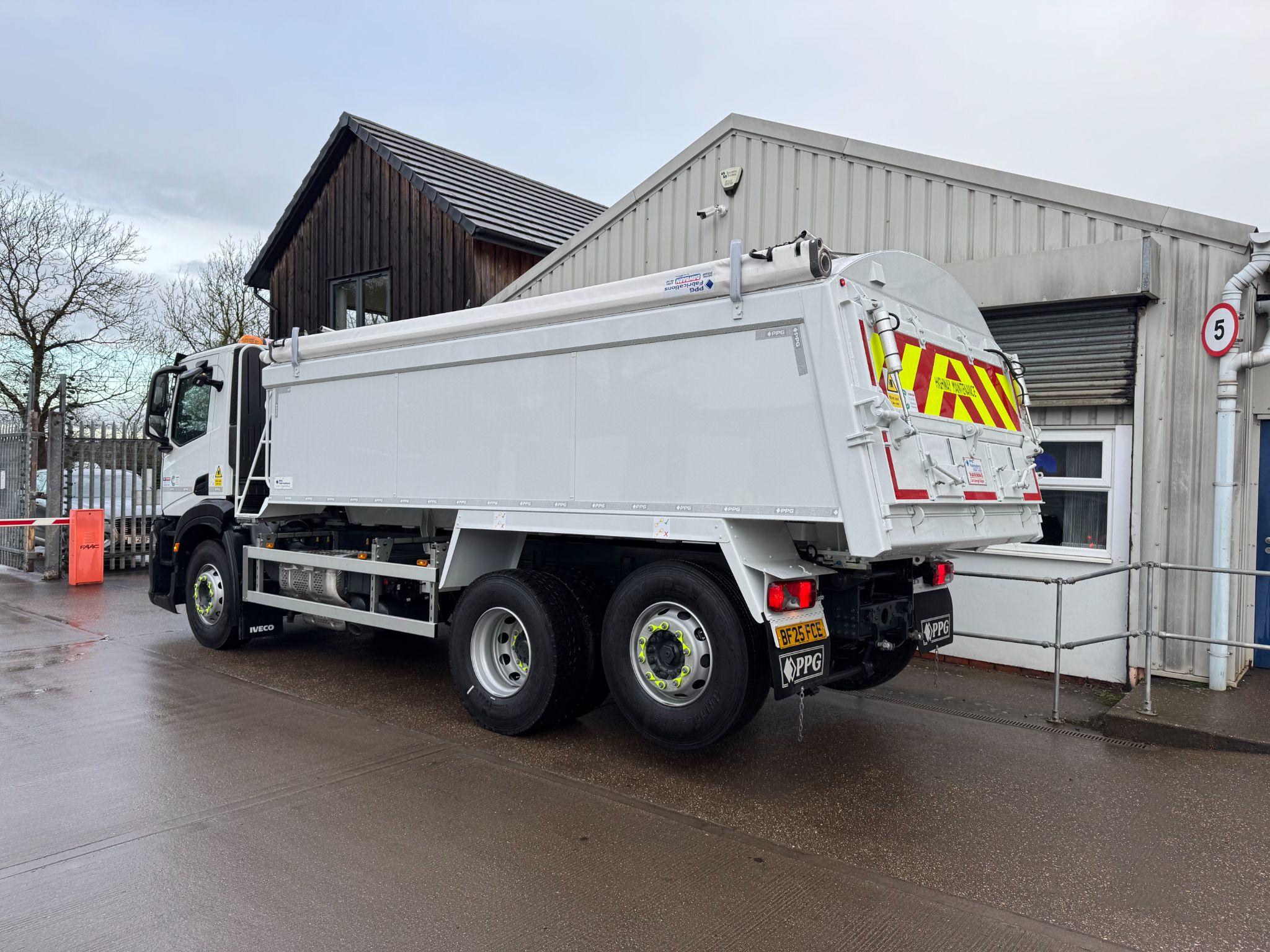

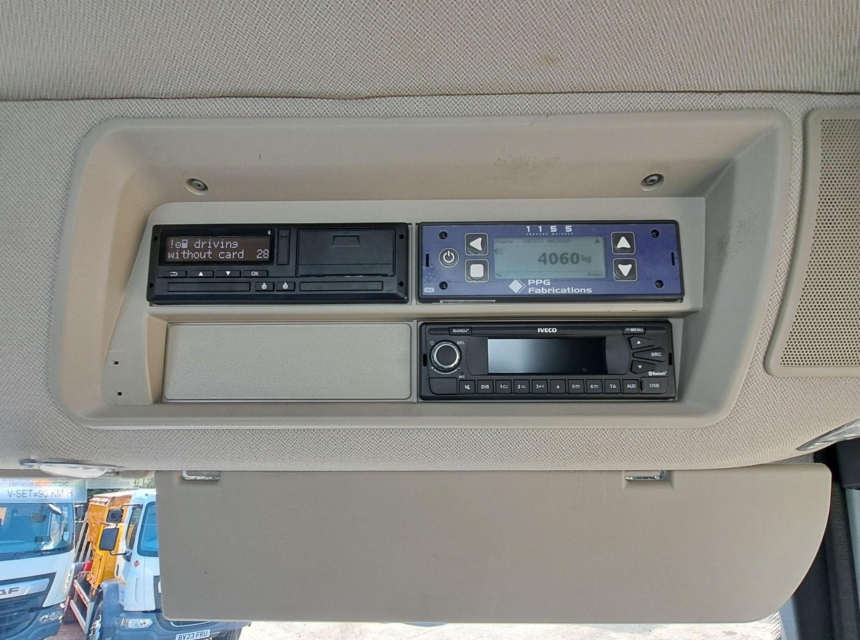

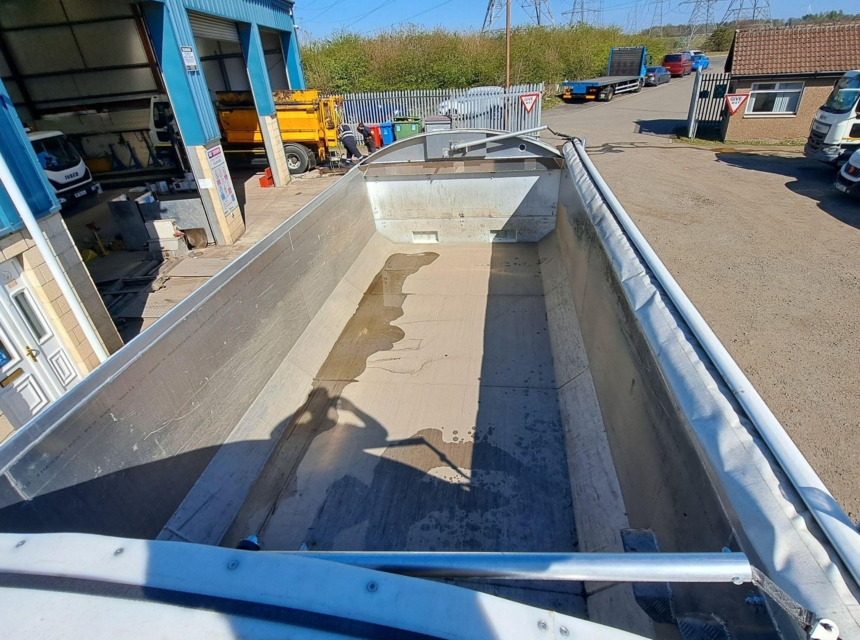

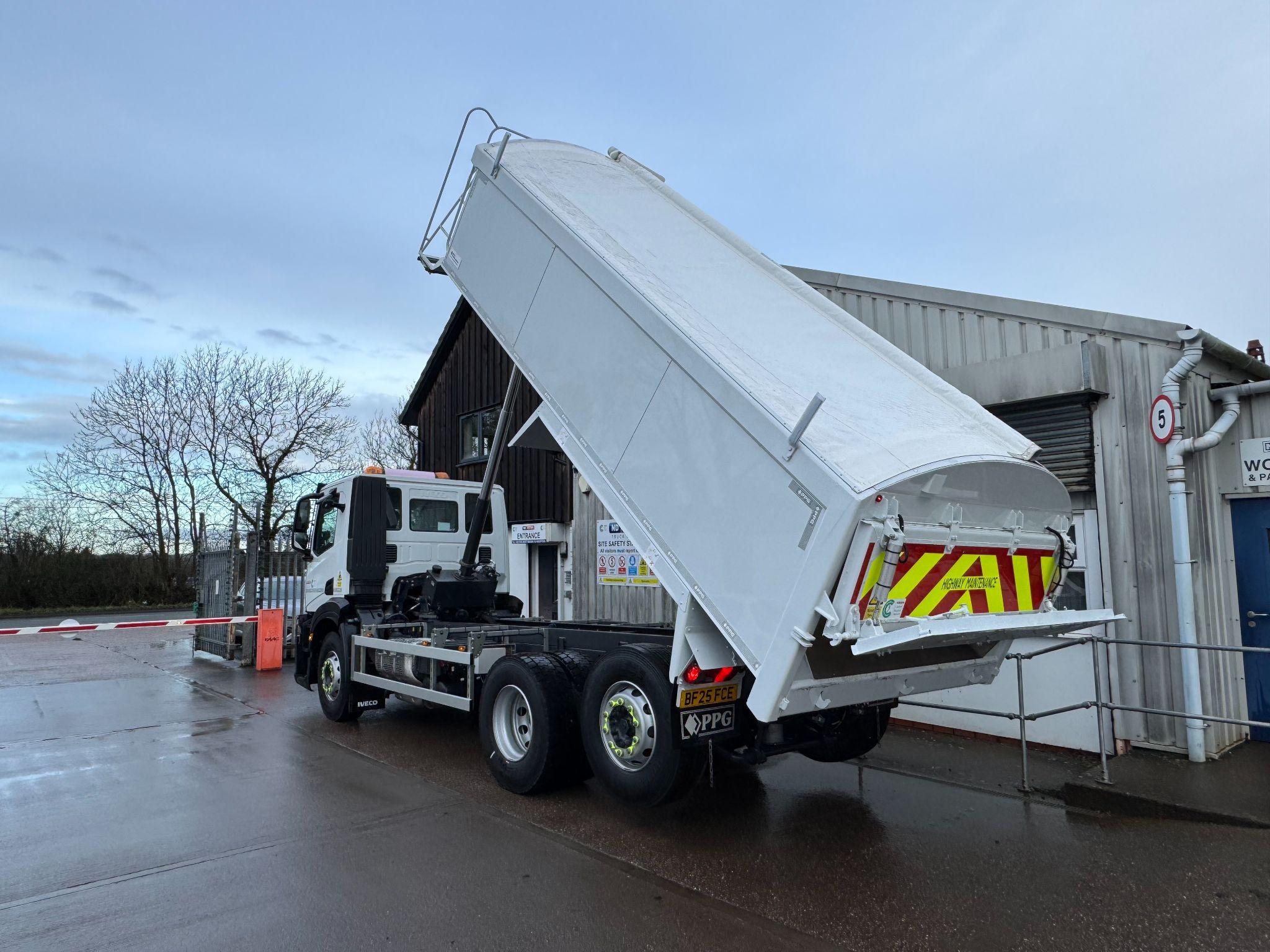

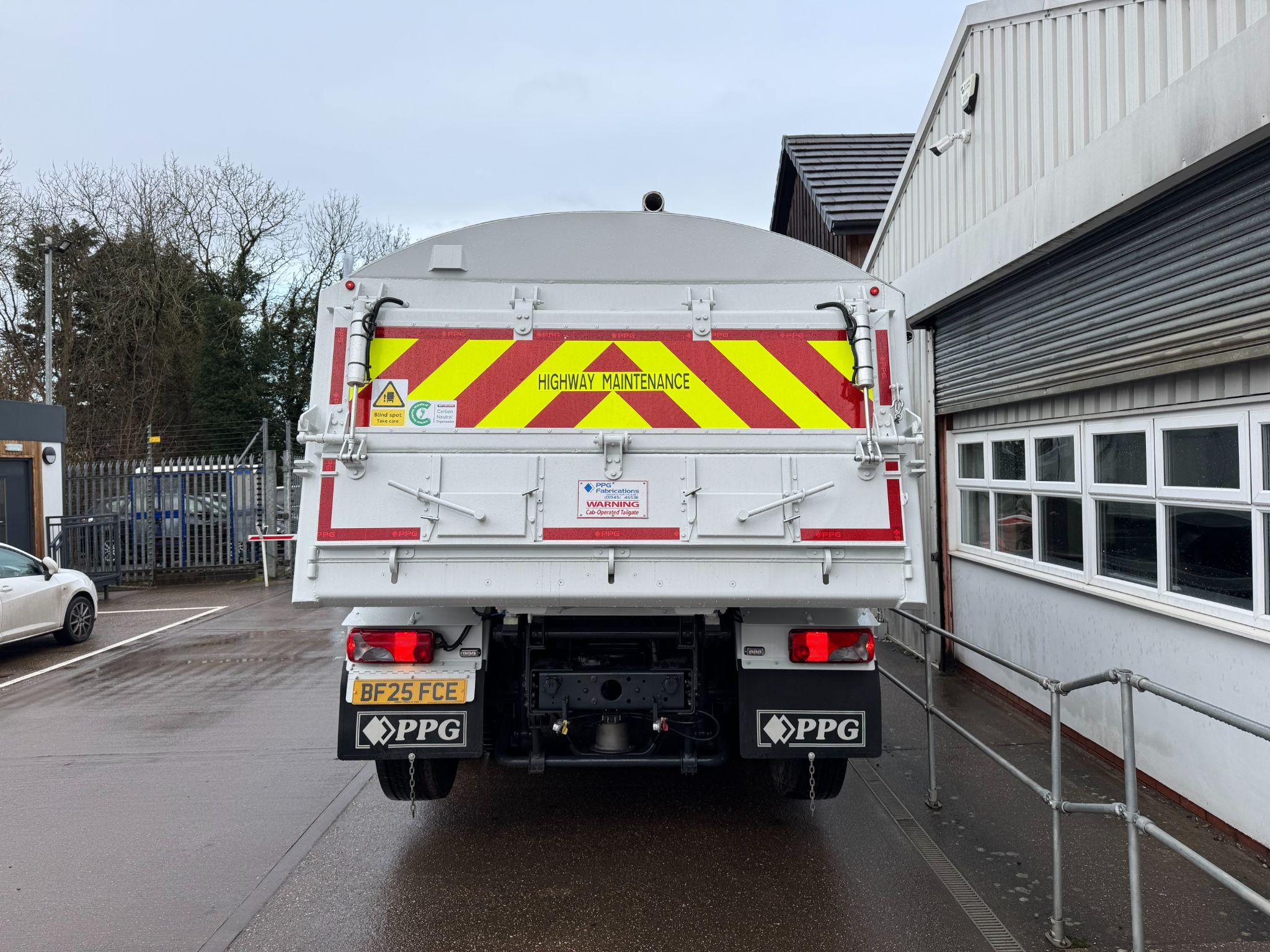

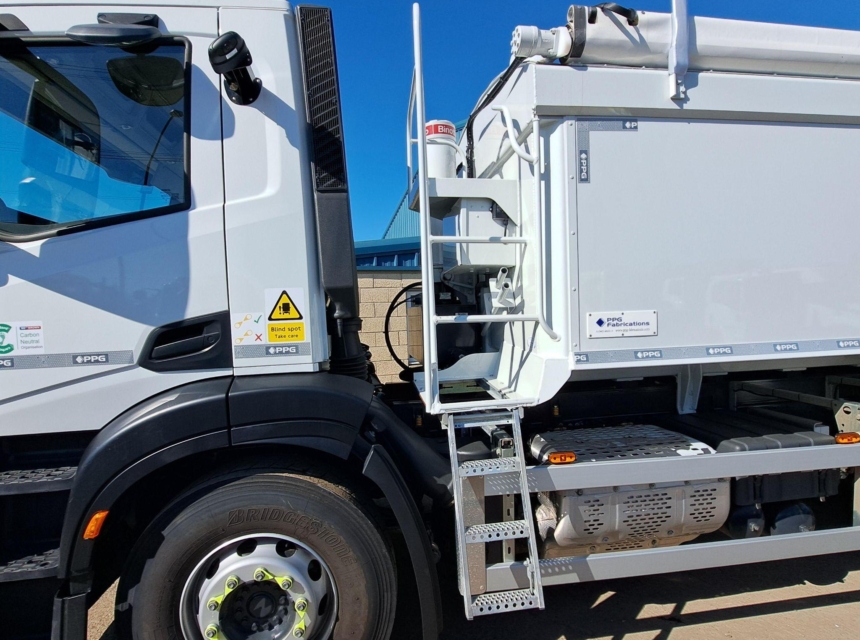

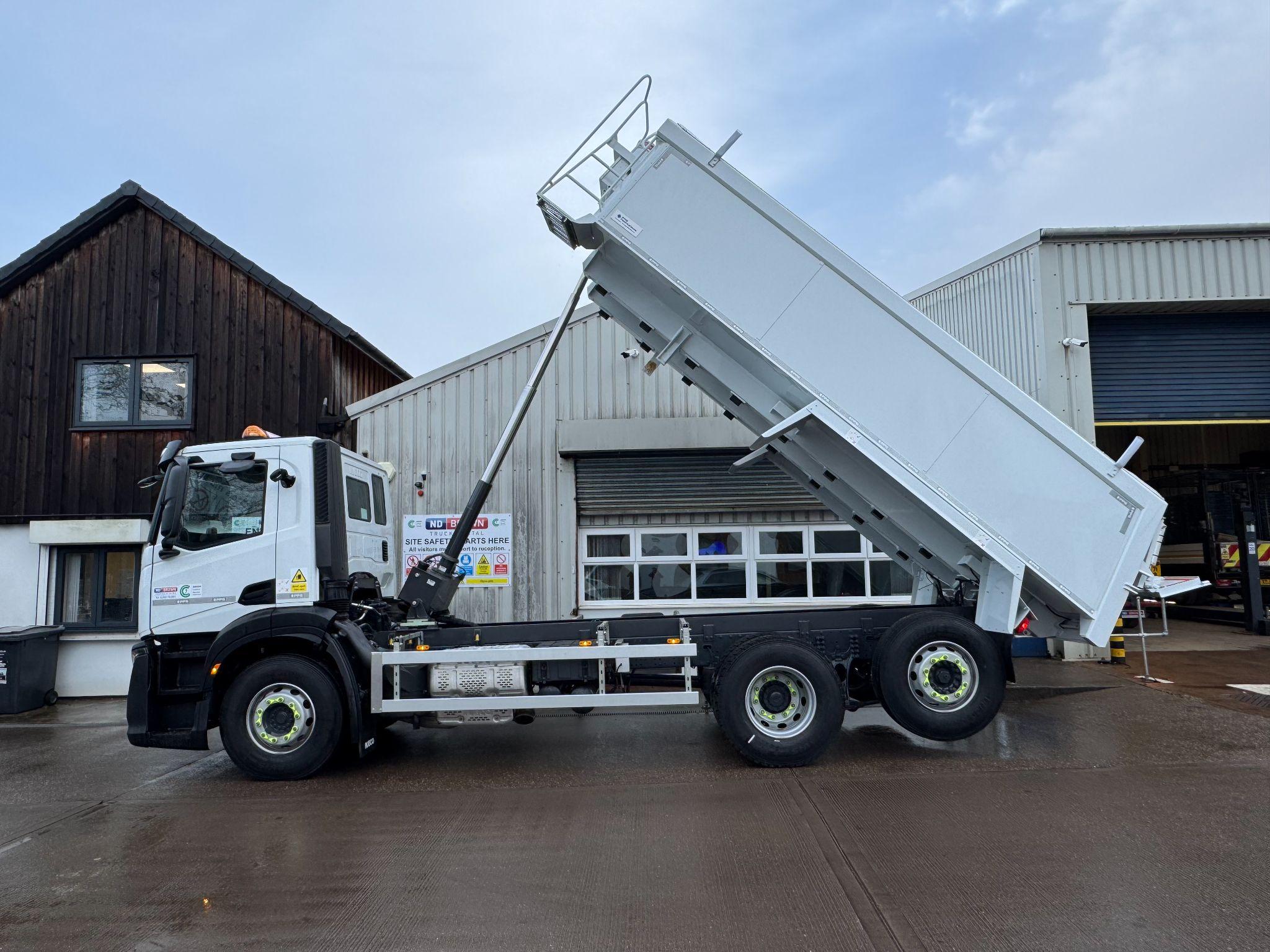

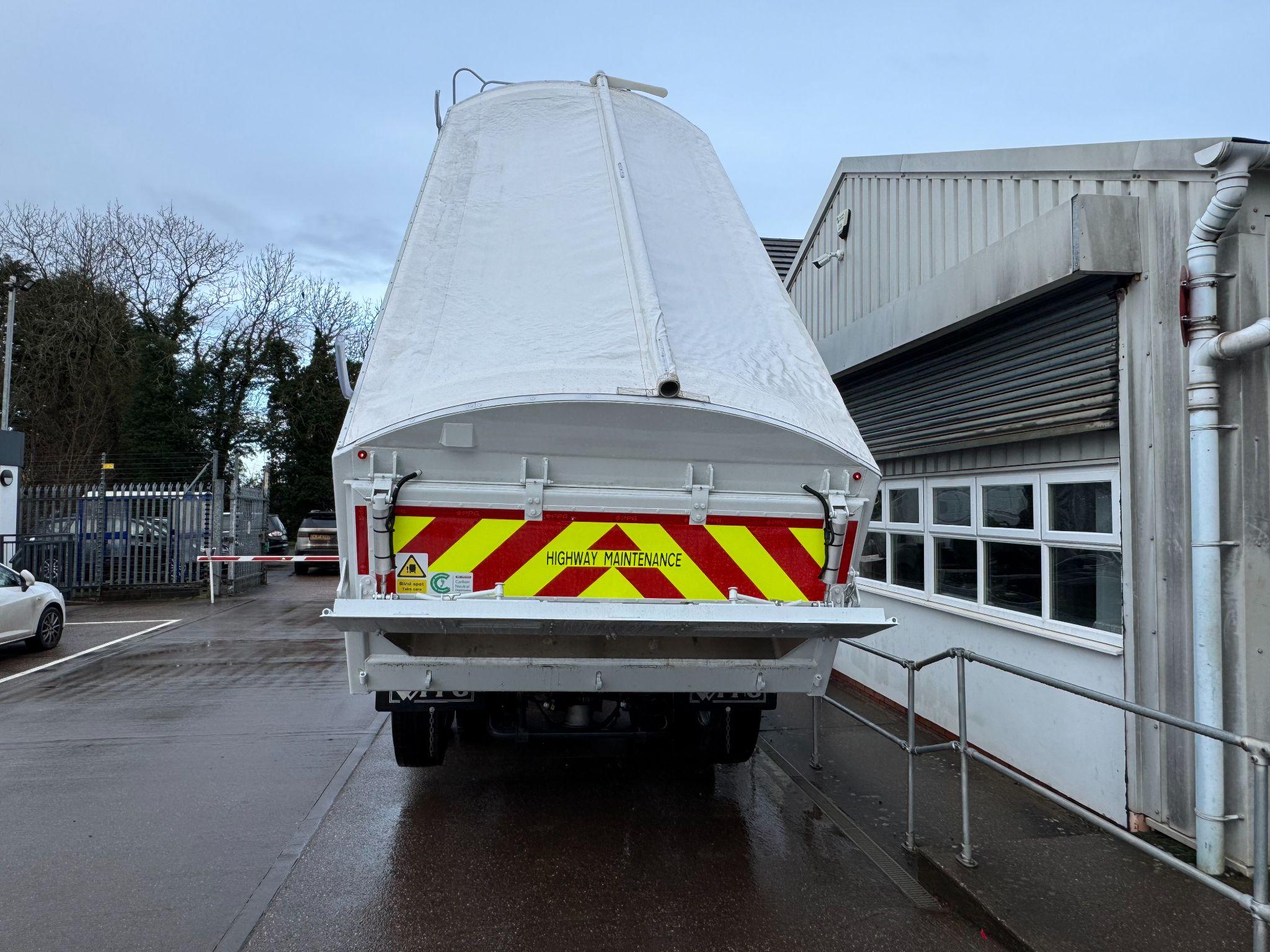

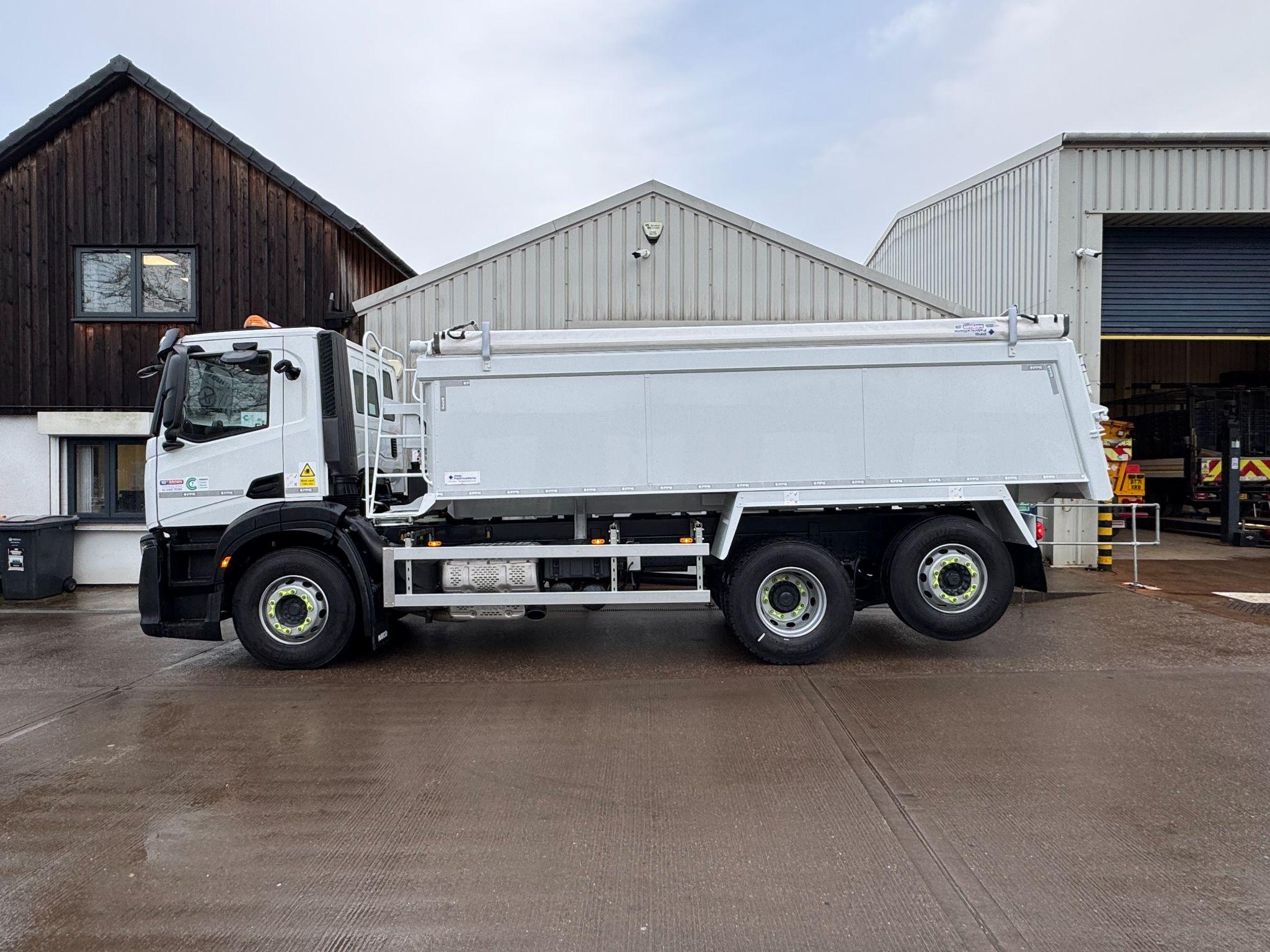

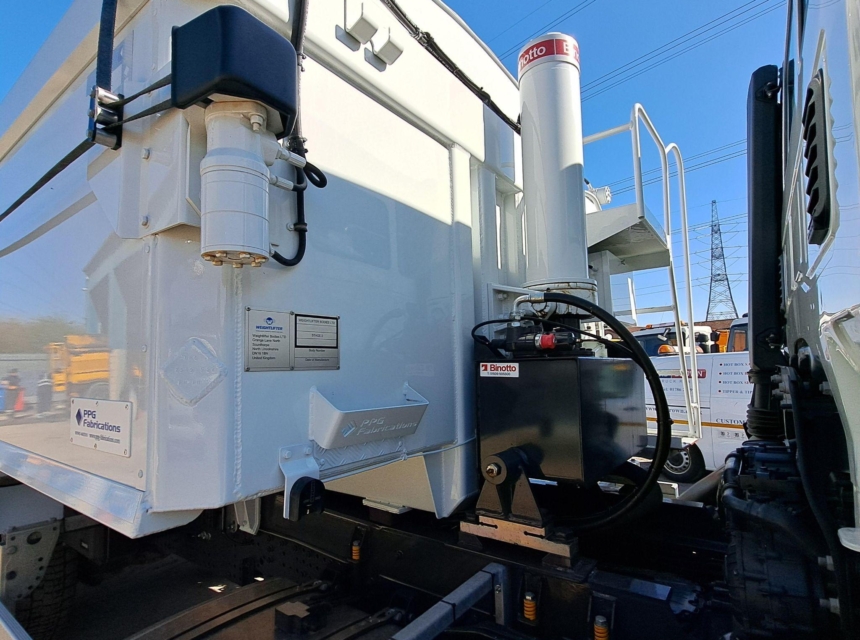

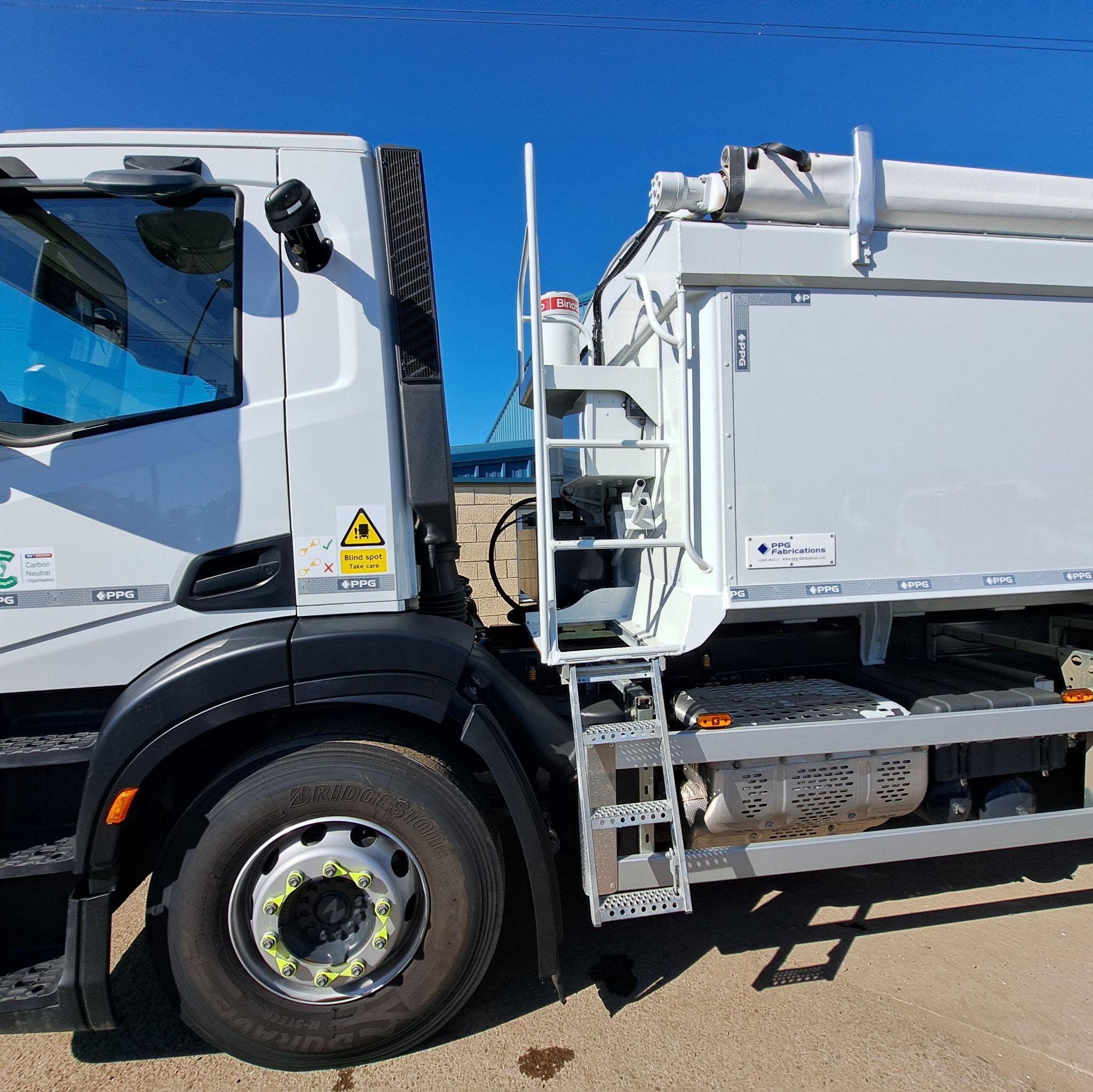

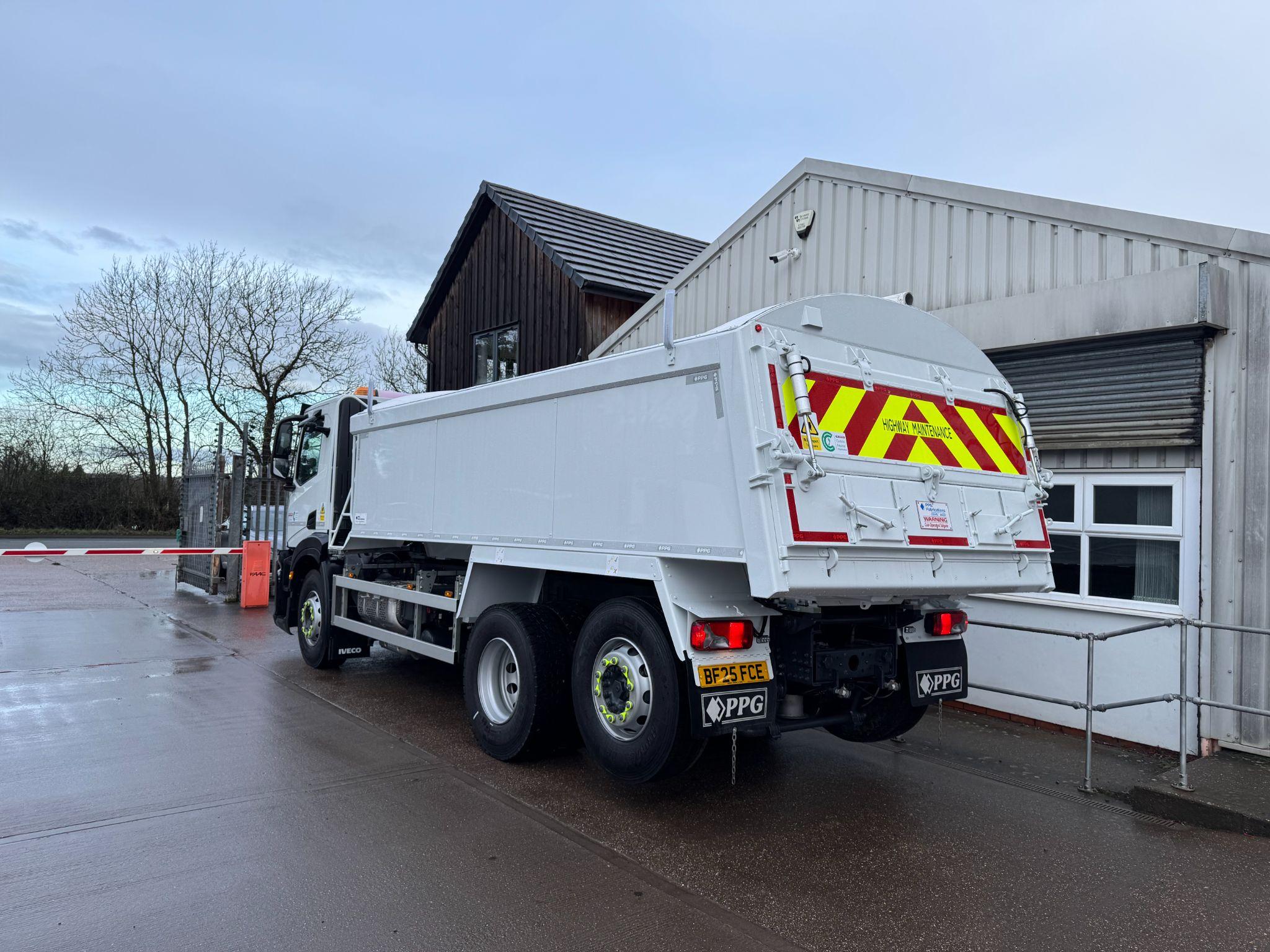

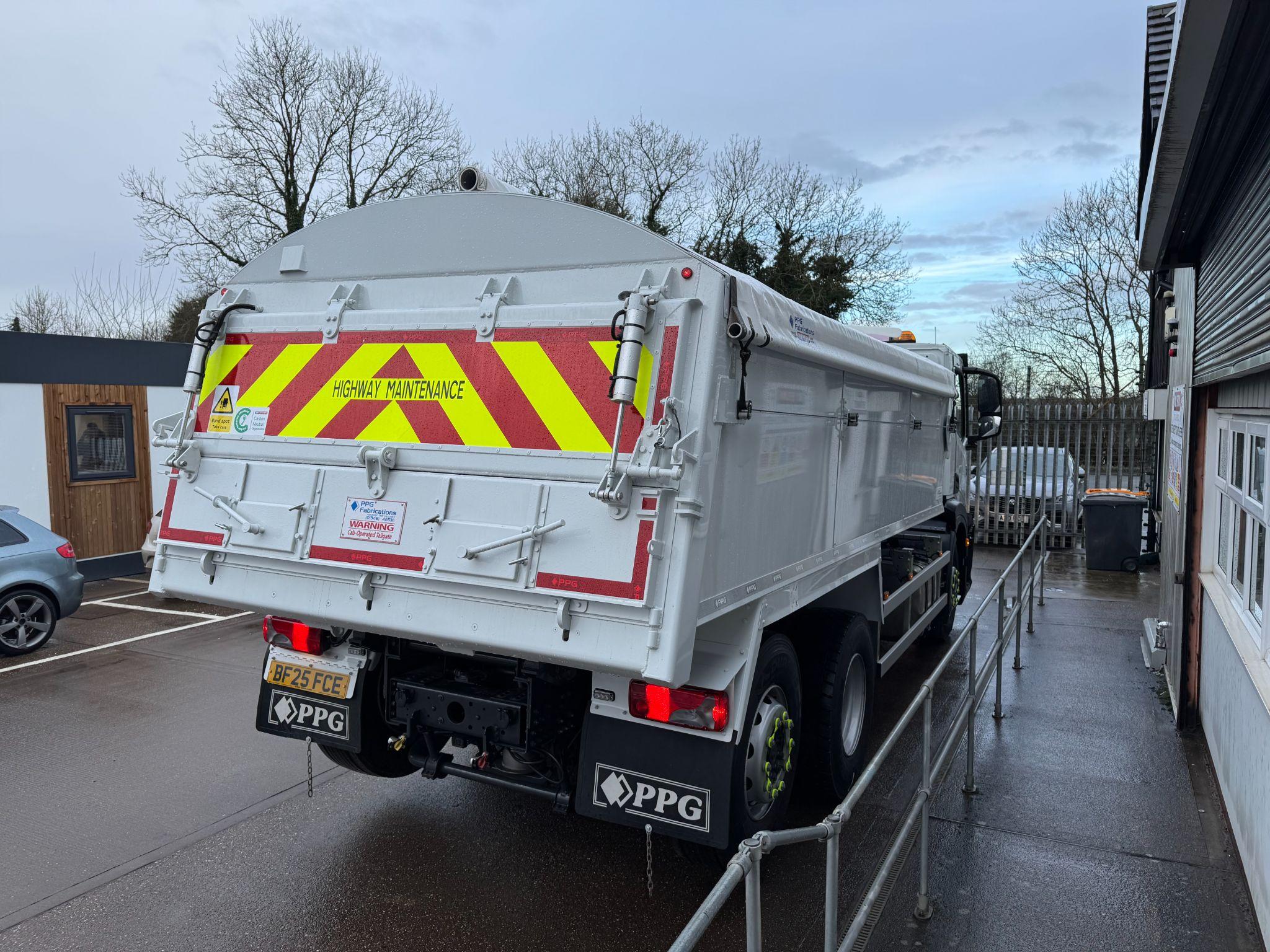

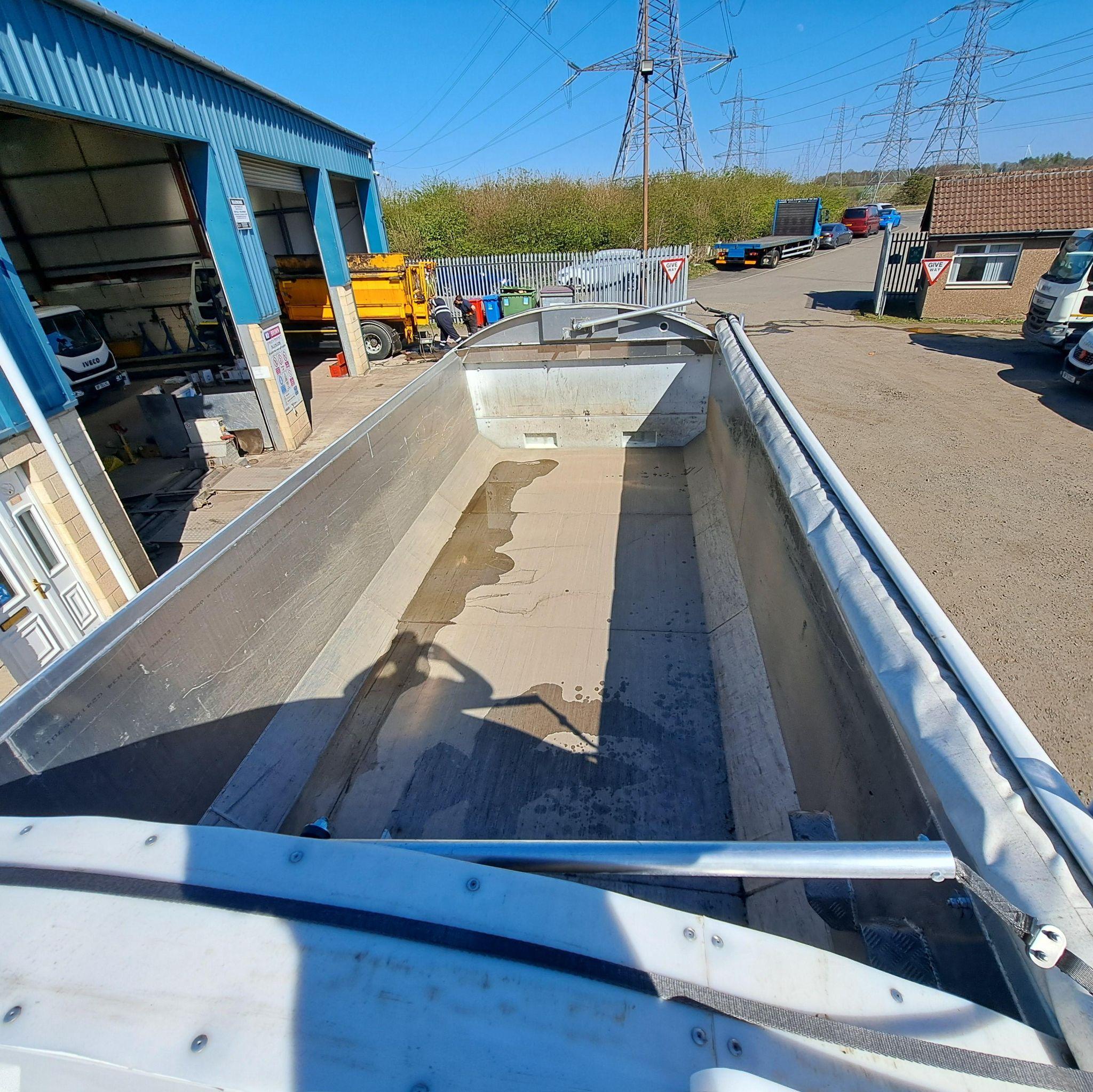

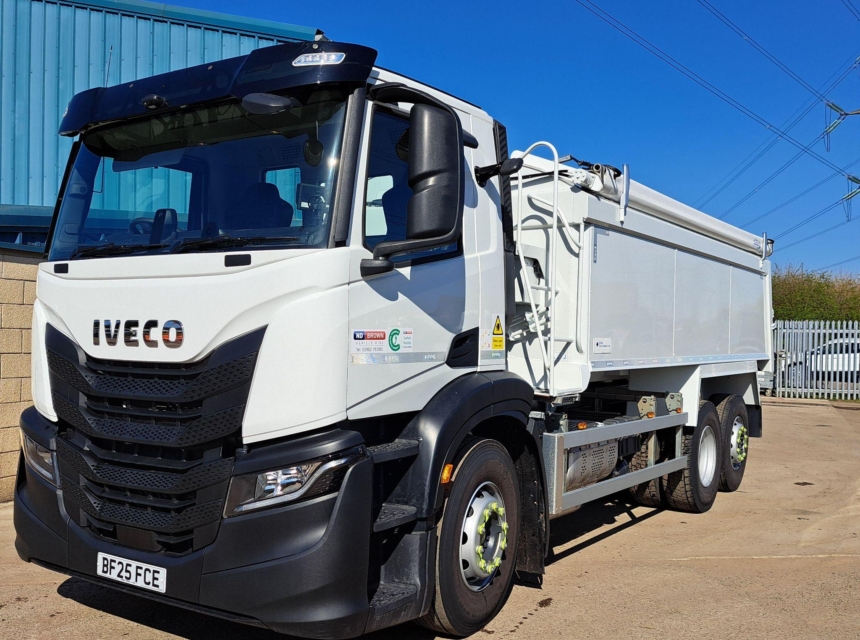

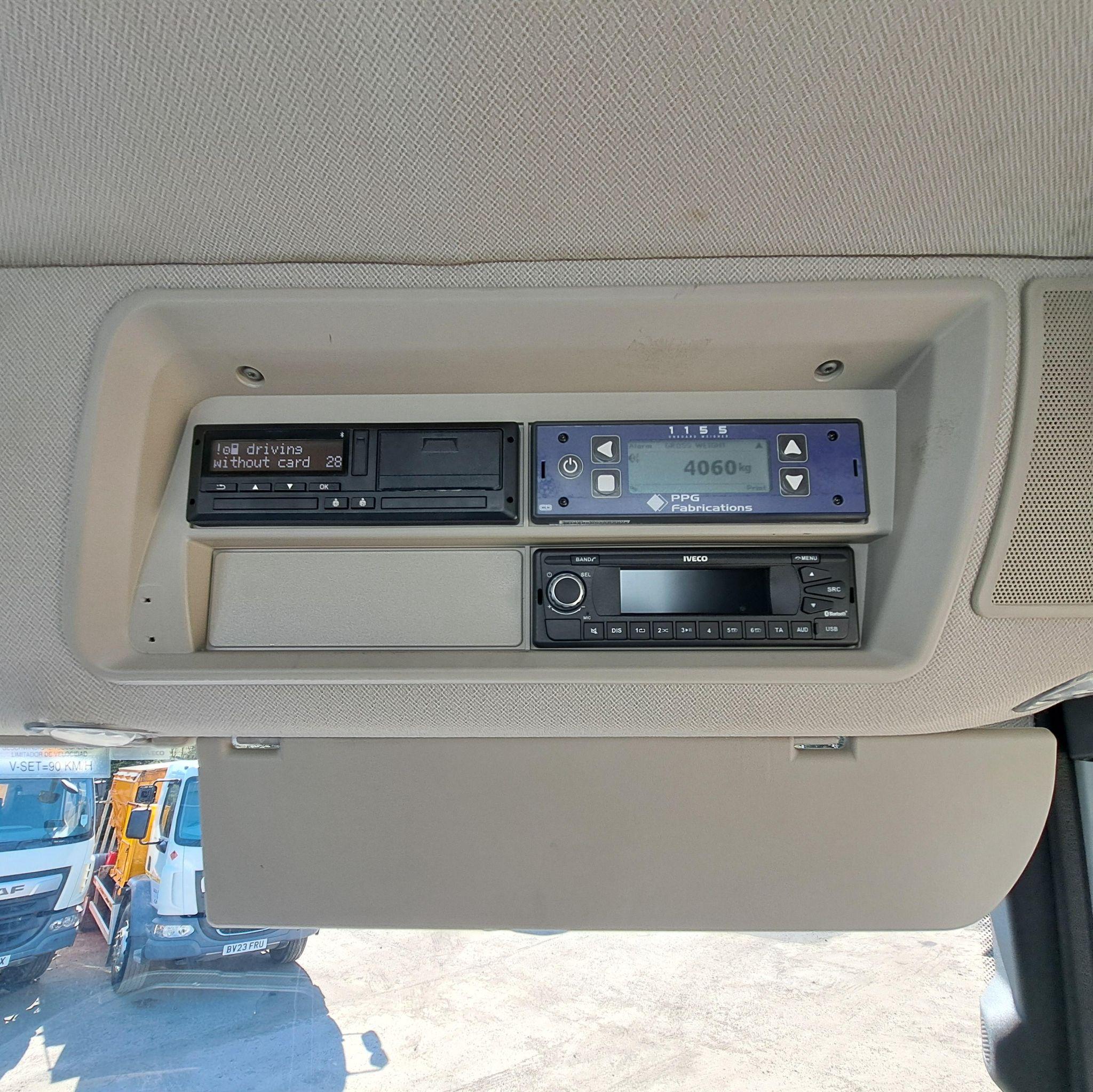

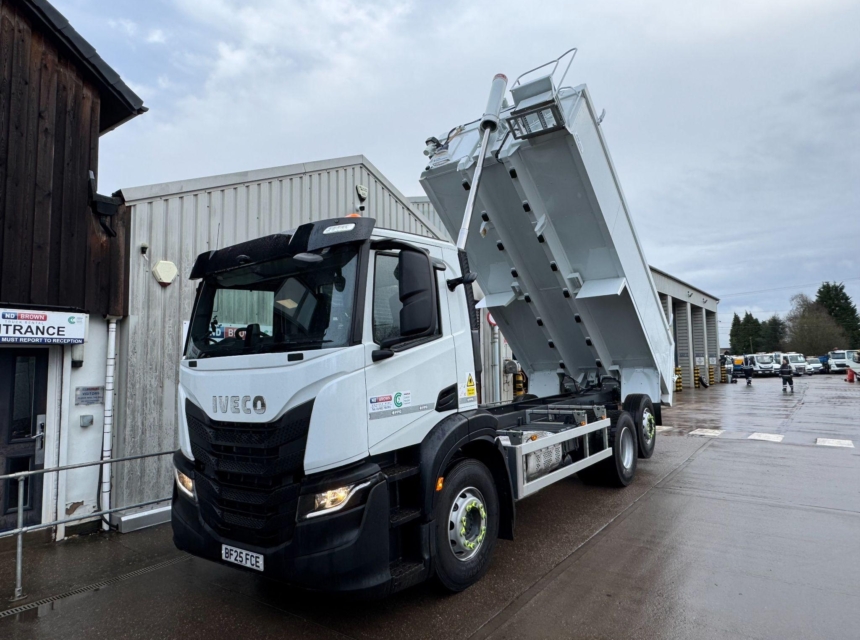

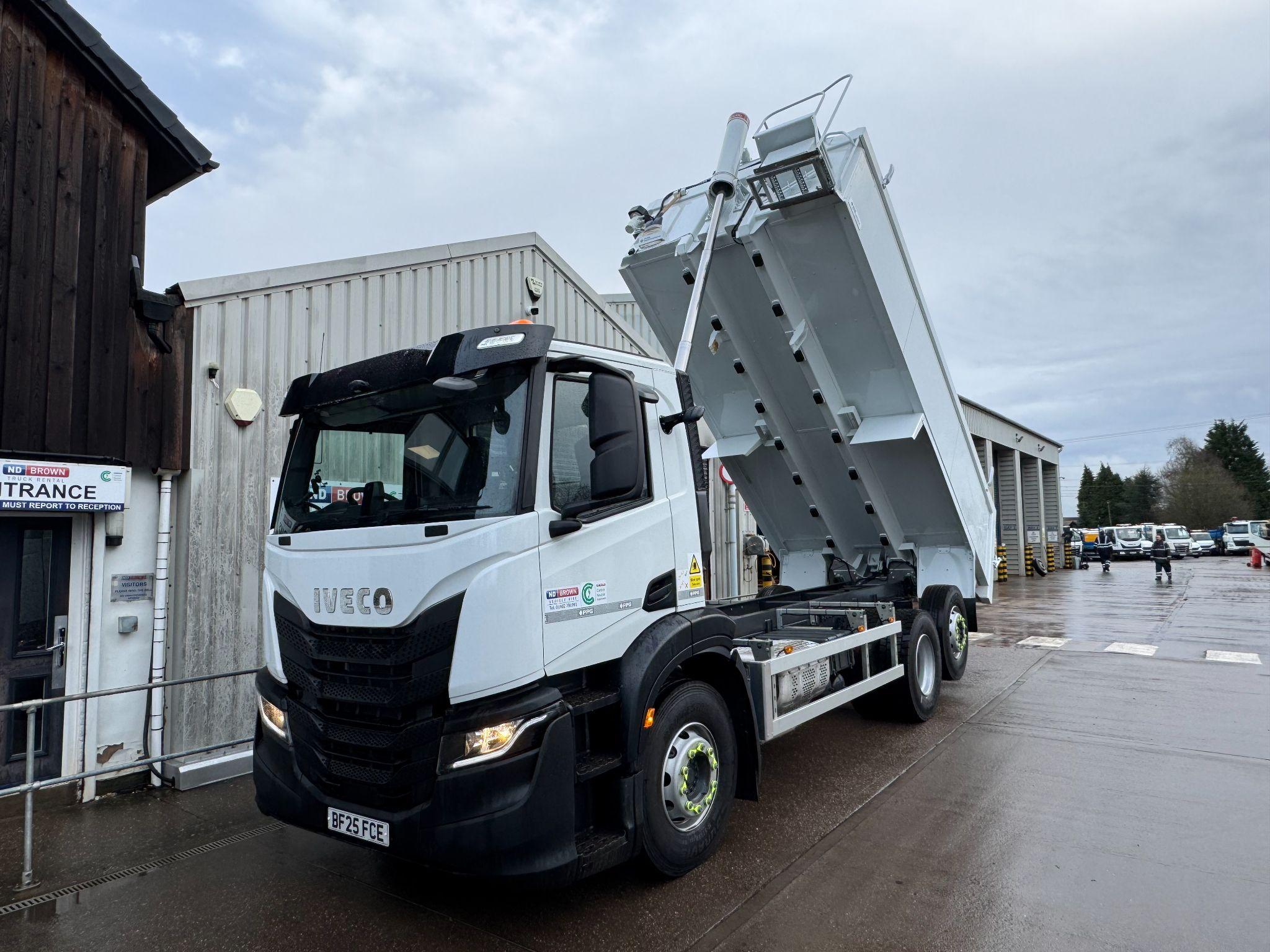

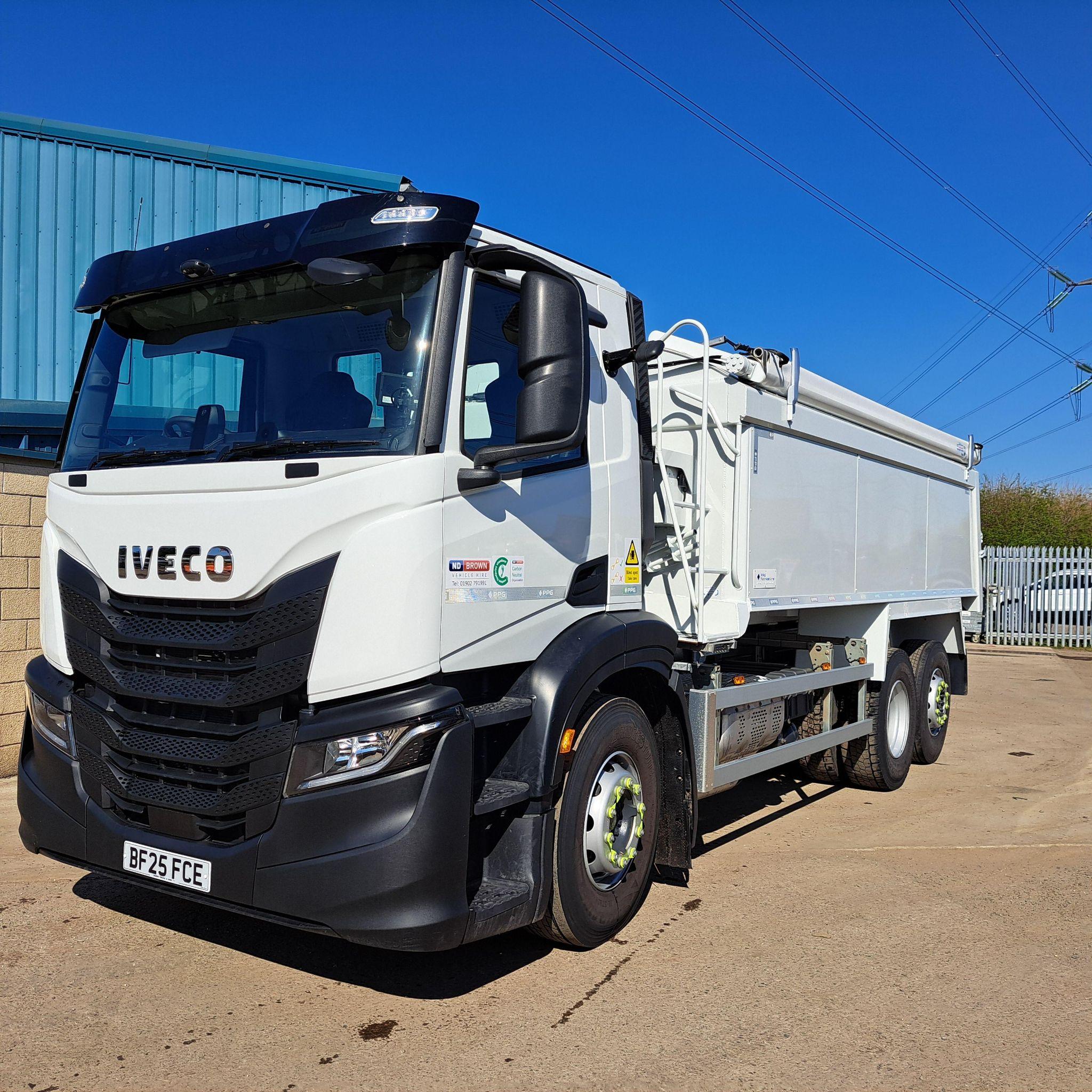

Vehicle specification and additional information: Air conditioning, Automatic gearbox, Shovel supplied, Sun,Visor – Beacon bar, DVS B / PSS fitted, Reverse camera Body manufacturer: PPG & Serial numberOnboard Weighing System VPG PM1155 4 digital loadcell system Display fitted above windscreen.Body Specification: Insulated Tipper body, internal length: 5,728mm (18’9”), Body, headboard & taildoor depth: 3′ 9” / 1,143 mm, Internal width: 7′ 8” / 2,335mm.Tailboard: Constructed from 4.0mm alloy plate. Horizontally split 60% top, 40% bottom. Hinged from box tie bar. Concealed air operated locking bar and airlift to lower door. Door sloped 300mm. Outside fitting. Manual override to locking bar Unique two stage Pneumax PPG taildoor safety system that protects the operator from harm by preventing the lower door from lifting until the locking cams are fully released. System prevents the cams from locking until the lower door is fully closed With two, lever operated insulated tar hatches. Includes anti burst pins, detachable tar clamps and stowage on headboard for hatch handles. Single switch operation of rear door. / / Body Access: Access ladder and walkway, mounted 400mm down from top of body, ladder inclined toward ram, all handrails smooth, three points of contact to be maintained at all times. / Internal steps on front side panel to correspond with external access. Self draining treadplate safety steps. Top step 400mm down from side rail / Lighting Equipment Red LED outline marker lights on rear tie bar. One each side LED Side marker lights. LED loading light switched in cab. / Sheeting System Dawbarn Hydroclear lightweight sheet system SS1. Power box mounted on headboard. PPG 300mm apex ends. 900 gram sheet. Aluminium side pole. Side pole lift arms. Operated by a bluetooth remote with manual override switch on headboard / Sheet colour: White DE001 9002. 300mm sheeter arches / Paint Gloss painted body in two pack, single colour with conspicuity markings Body colour: White to match the cab Paint
